ADVANTURE SPECIFICATION

N2000 Chromatogram Data System (4.0 versions) is a data Data System which developed by Surwit Technology Inc. on the basis of numerous customer feedbacks, which fit to domestic and foreign chromatography instrument analog signals to accept, process and report.

N2000 adopts the latest production technology and high-quality components, on the basis of ensuring operation convenience, greatly improved the hardware reliability and anti-interference, which can be widely used in chemical industry, pharmaceutical, food, life sciences, mines, research institutes and universities laboratory, etc.

Compatibility

N2000 (4.0) can be connected to Shimadzu, Agilent, Waters and general chromatography instrument.

Original imported chip

The original imported conversion module chip ensures the highest accuracy.

Zero self-adjustment

Self adjustment to zero ensures the reproducibility of chromatographic analysis of non-influence temperature of collection card.

Automatic calibration function

Advanced dynamic memory can constantly record and calibrate data, reduce the error influence as much as possible.

Compared with different Versions

All is Dual Channel CDS

Version		Port	Softdog	English Version	Colour	Files Style	Special	Compatible Function
N2000	4.0	COM	×	√	Black	*.DAT	Basic Use	Upgrade to STI Software
	6.1	COM	√	×	Grey		Add softdog
	Sp1	USB	√	×	Grey		USB User management
N3000		COM	×	×	Black		Negative peak Combine On-Line and Off-Line Function of N2000 Add new report style
N2010		COM	×	×	Black		Negative peak Combine On-Line and Off-Line Function of N2000 Add new report style Calculation repeatability easier
VI2010		USB	√	√	Grey	.CHM .DAT	User management SST Audit Respective method GLP GMP	√
VI2011		USB	√	√	Grey	.CHM .DAT .CDF .CDF（AIA）	User management SST Audit Respective method GLP GMP E- signature	√

A1. Specifications of N2000 Chromatography Data System

General

Number of Channels: 2

Input Voltage: -5 mV ~ 1.7 V

Input Resistance: > 10 MW

Sensitivity of Integration: 1 mV-sec

Dynamic Range: 107

Linearity: ~ 0.1 %

Peak Processing

Number of peaks: > 1000

Width of peak: 0.1 sec

Automatic Time Programming

Manual Integration enabled

Automatic identification of complex peaks and precise partition of overlapped peak

Automatic tracing and correcting base line

Automatically eliminate the affect of negative peak

Methods for Identifying Peak

Conservative time method

Components table method

Parameters for Integration

Peak area

Peak height

Method for Quantitative Calculation

1. Normalized Method,

2. Normalized Method with Proportional Factor,

3. Internal Standard Method,

4. Grouping Method,

5. Multiple Internal Standard Method,

6. External Standard Method,

7. Logarithmic Method.

A2. System Requirements

Hardware Computer

IBM or 100% compatible (P-1 or higher)

CPU: 166 MHz or faster

Memory: 32M Bytes or more

Disk Drive: 1 hard disk, 1 CD-ROM drive, 1 or 2 floppy disk drives

Monitor: VGA display and graphics card 256 colors, 1024 by 768 pixels

Mouse: Bus or serial mouse

Printer (optional): Any printer that works with Microsoft Windows

Software Windows

Microsoft Windows 95/98 or later

Internet Explorer 4.0 or later

Other Misc. Hardware

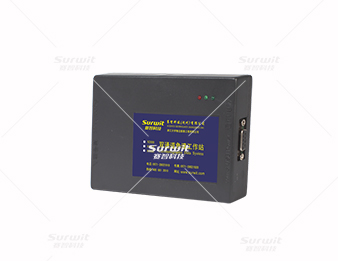

22-bit high performance ADC card

Terminal panel and cover

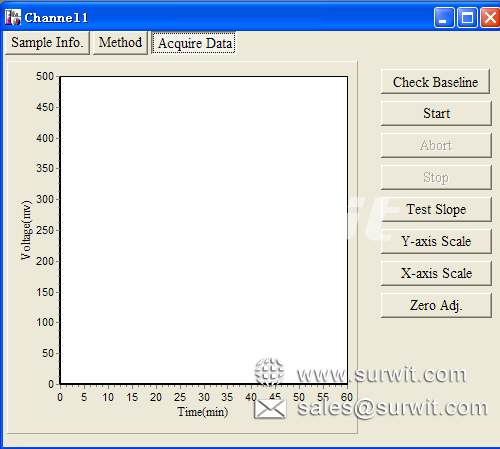

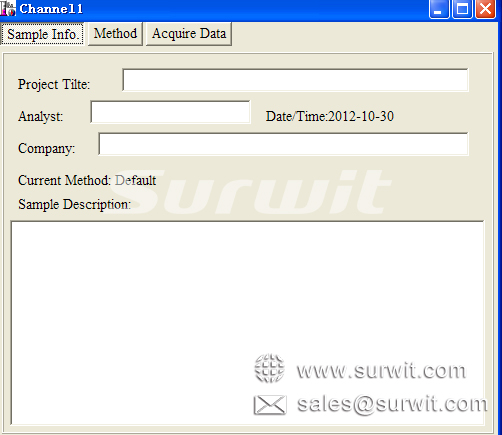

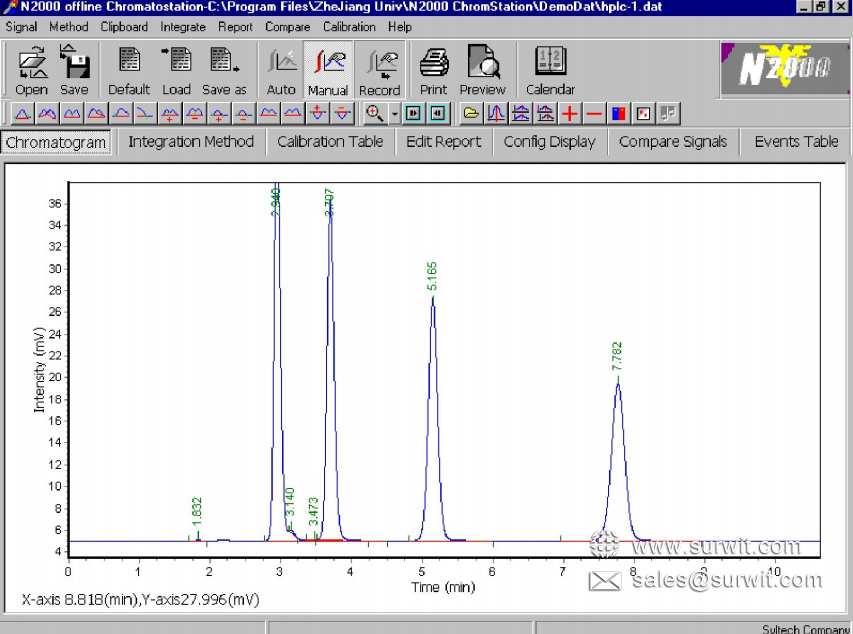

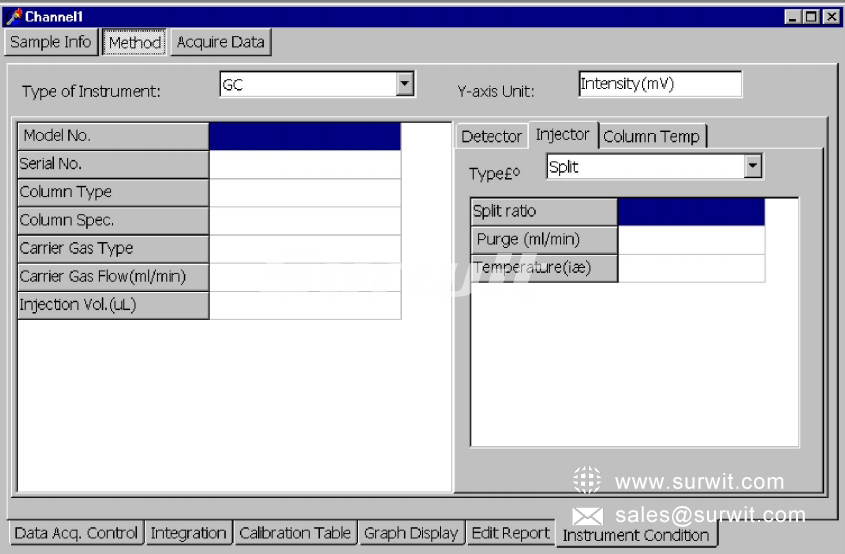

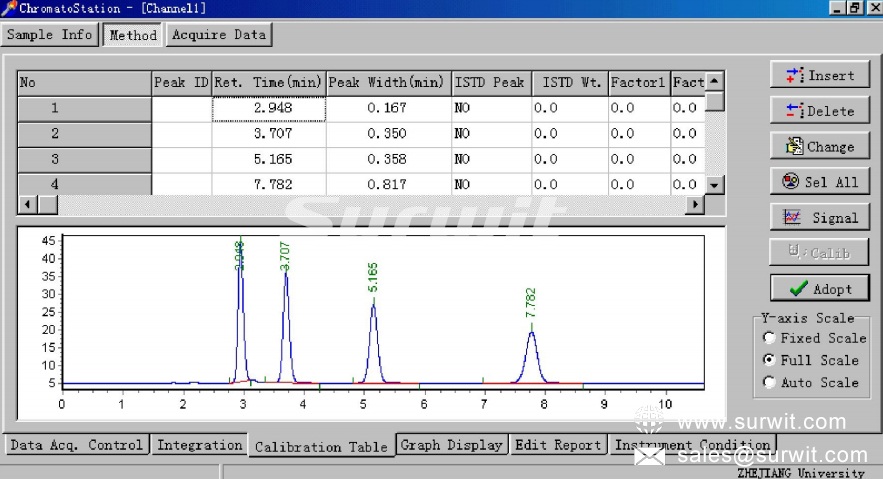

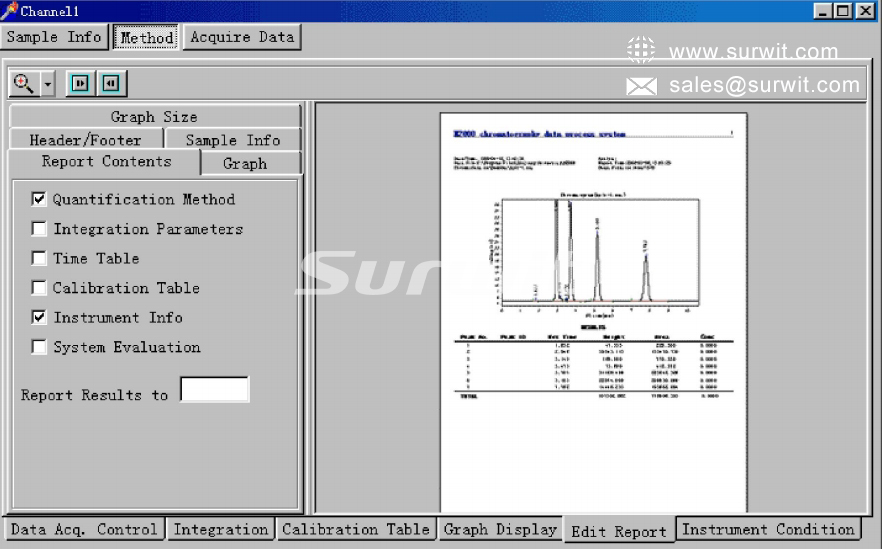

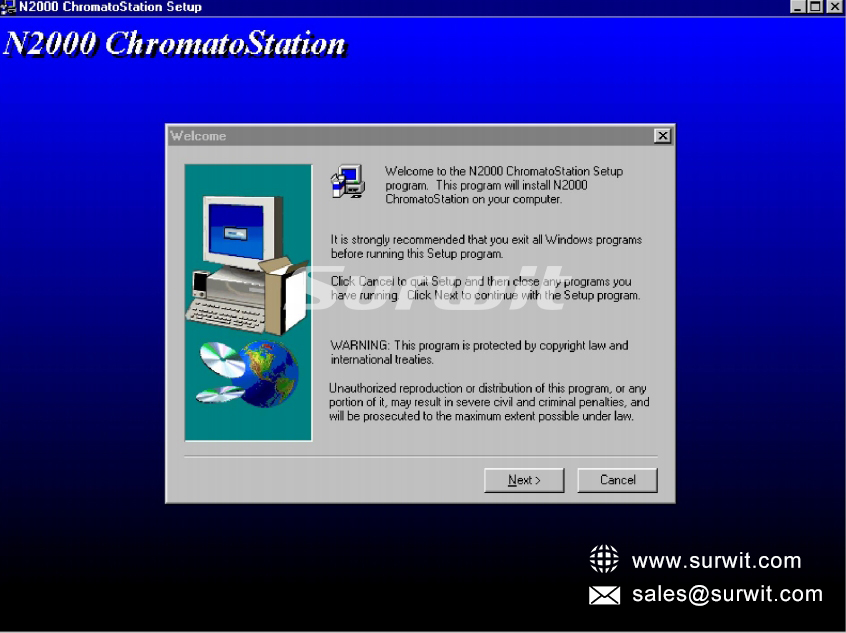

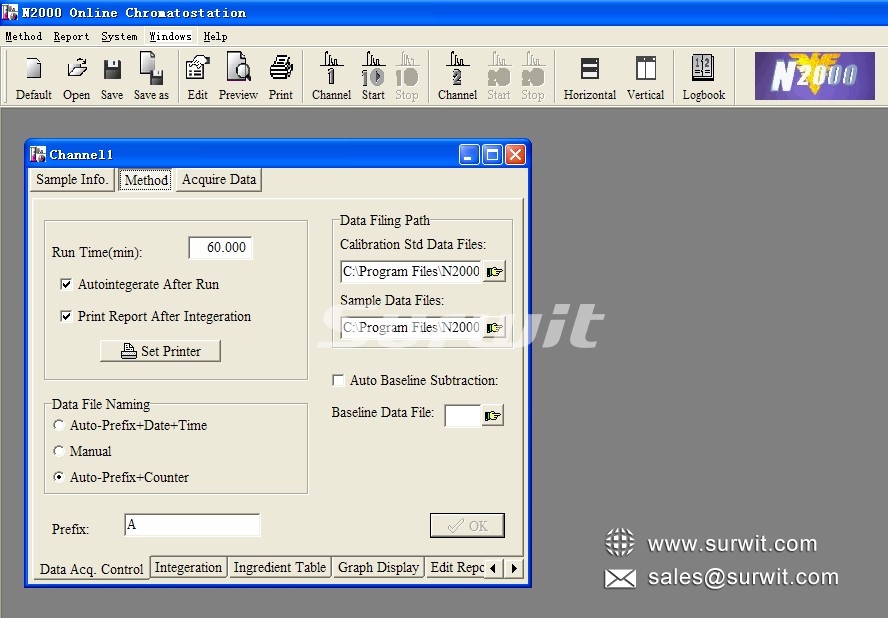

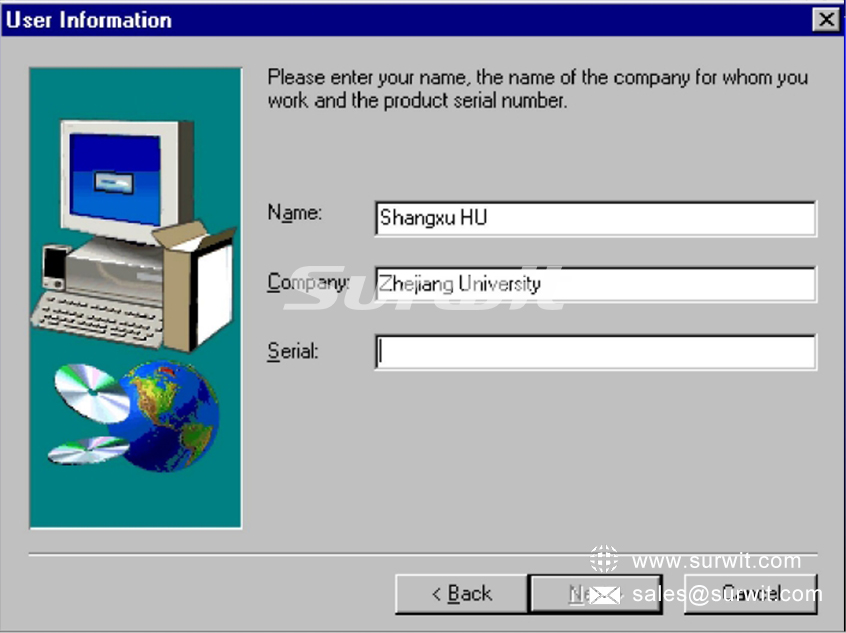

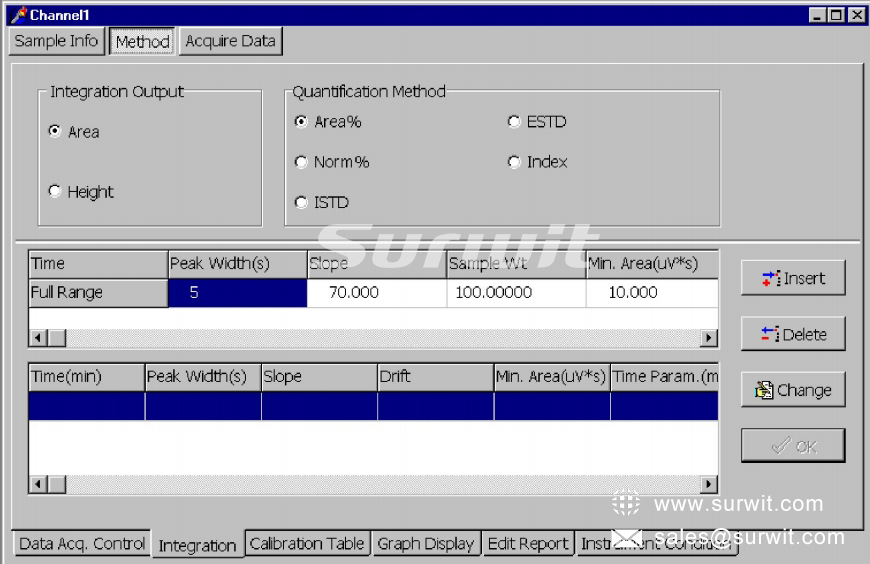

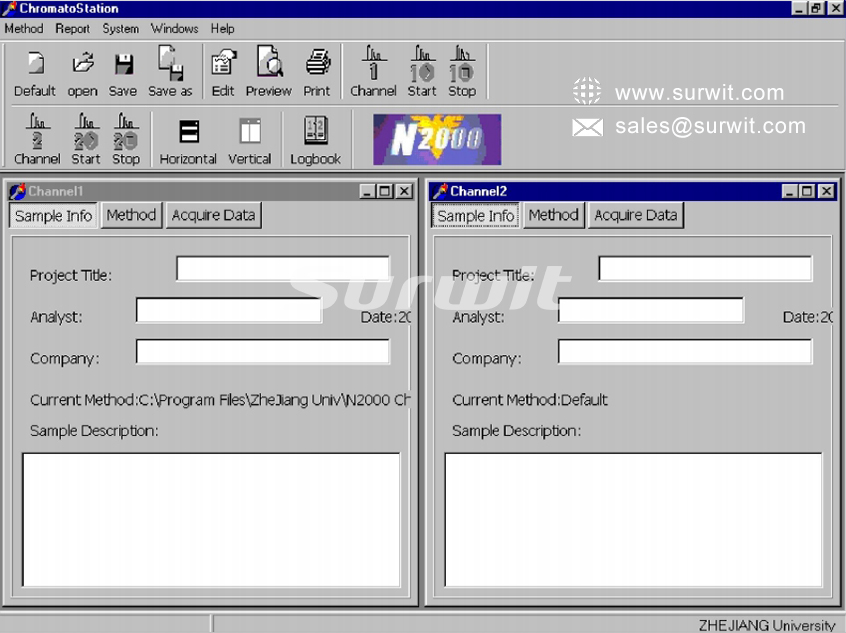

Work screenshots:
